This metal matrix composite serves dual roles in chip-level packaging: providing structural support as a substrate, and acting as a high-performance heat spreader to dissipate heat from high-power chips.

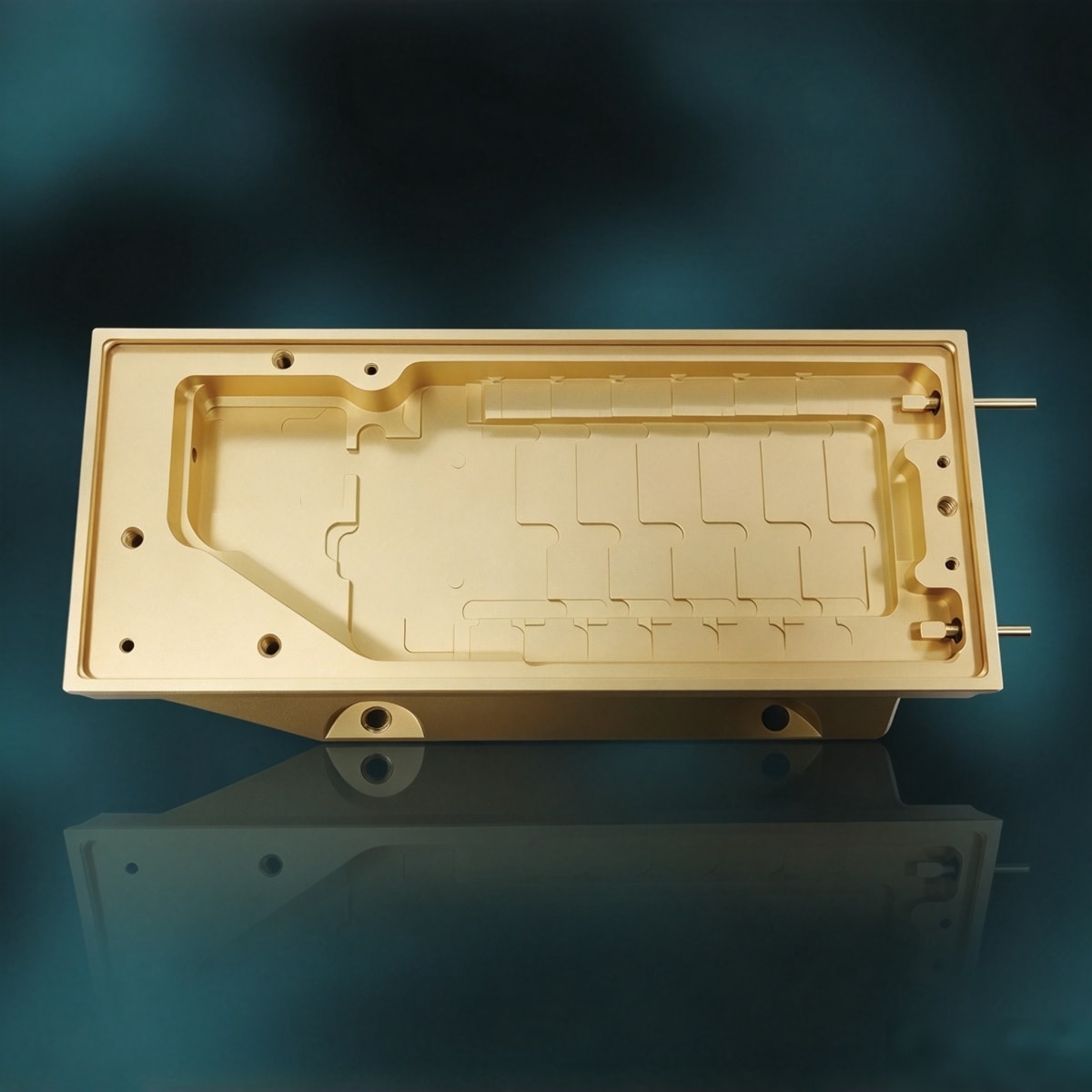

Diamond-Aluminum Thermally Conductive Composite is an advanced material designed to address thermal challenges in weight-sensitive, high-reliability applications. By uniformly dispersing diamond particles within an aluminum matrix, it achieves a unique combination of high thermal conductivity, low density, and a low coefficient of thermal expansion (CTE)—making it an ideal heat spreader and packaging material for aerospace, electric vehicles, and data center electronics.
High Thermal Conductivity – Efficiently spreads and dissipates heat from high-power density devices.
Low Density – Lightweight aluminum matrix reduces overall system weight, critical for aerospace and automotive applications.
Low CTE – Matches the thermal expansion of common semiconductor materials, minimizing thermal stress.
Excellent Mechanical Strength – Withstands vibration and thermal cycling without deformation.
Reliable Thermal Stability – Performs consistently over repeated thermal shocks.
Good Surface Finish – Low surface roughness and high parallelism for direct bonding.
| Parameter | Value | Unit | Test Method |
|---|---|---|---|
| Thickness | > 0.5 | mm | / |
| Density | 3.0 | g cm⁻³ | ASTM B311 |
| Surface Roughness | < 0.5 | µm | ASTM D7363 |
| Parallelism | < 0.02 | mm | / |
| Bending Strength | > 300 | MPa | ASTM A370 |
| Thermal Conductivity | > 600 | W/m·K | ASTM E1461 |
| CTE | < 6.5 | ppm/K | ASTM E831 |
| Thermal Stability | -65 to +150°C, 1000 thermal shocks, <5% degradation | / | / |
Aerospace – Thermal management for avionics, satellite electronics, and high-reliability systems.
Automotive – Power modules, battery thermal management, and EV inverters.
Data Centers – Heat spreaders for high-performance processors, ASICs, and optical transceivers.
High-Reliability Electronics – RF power amplifiers, laser diodes, and power converters.
